FAQ:

After connecting the rearview camera, the screen shows no signal, a black screen, and no picture, what should I do?

A) Please check your signal format (AHD/CVBS), and choose the right signal to run the camera.
B) Please check your connection, the red trigger line should connect to your reverse light and monitor the reverse-in cable.
C) If your monitor has an AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance of the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.

After connecting the rearview camera, the screen shows black and white, what should I do if there is no color?

A) Choosing the wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is an NTSC system, and the AHD1080P camera is a PAL system.
B) Please check whether the 6M line is normal, please replace it with another 6M cable to test the camera.

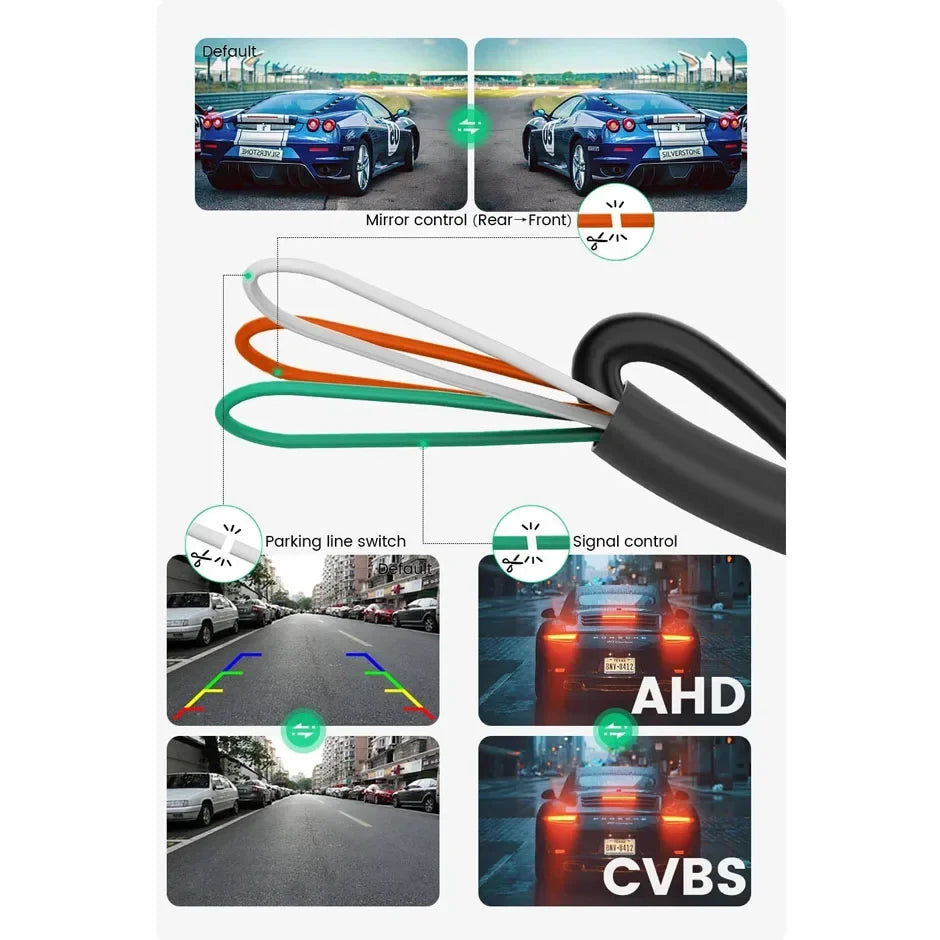

What functions are controlled by each of the 3 cables of the rearview camera?

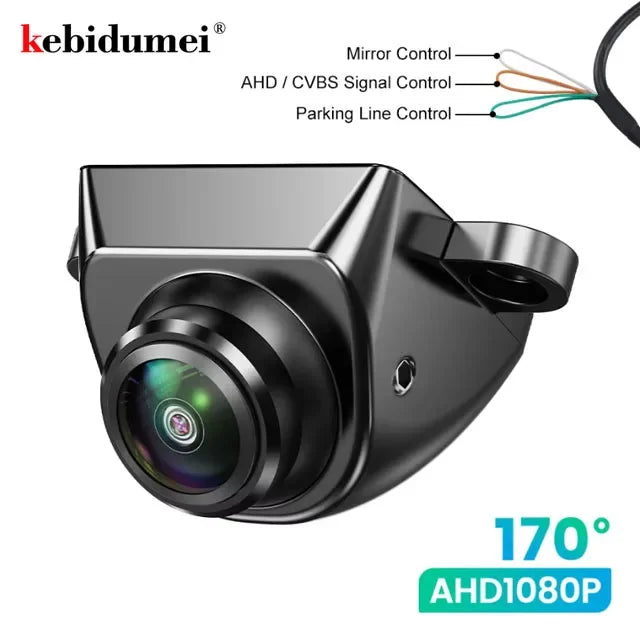

Brown Cable: Video Signal Control
• AHD1080P Camera:

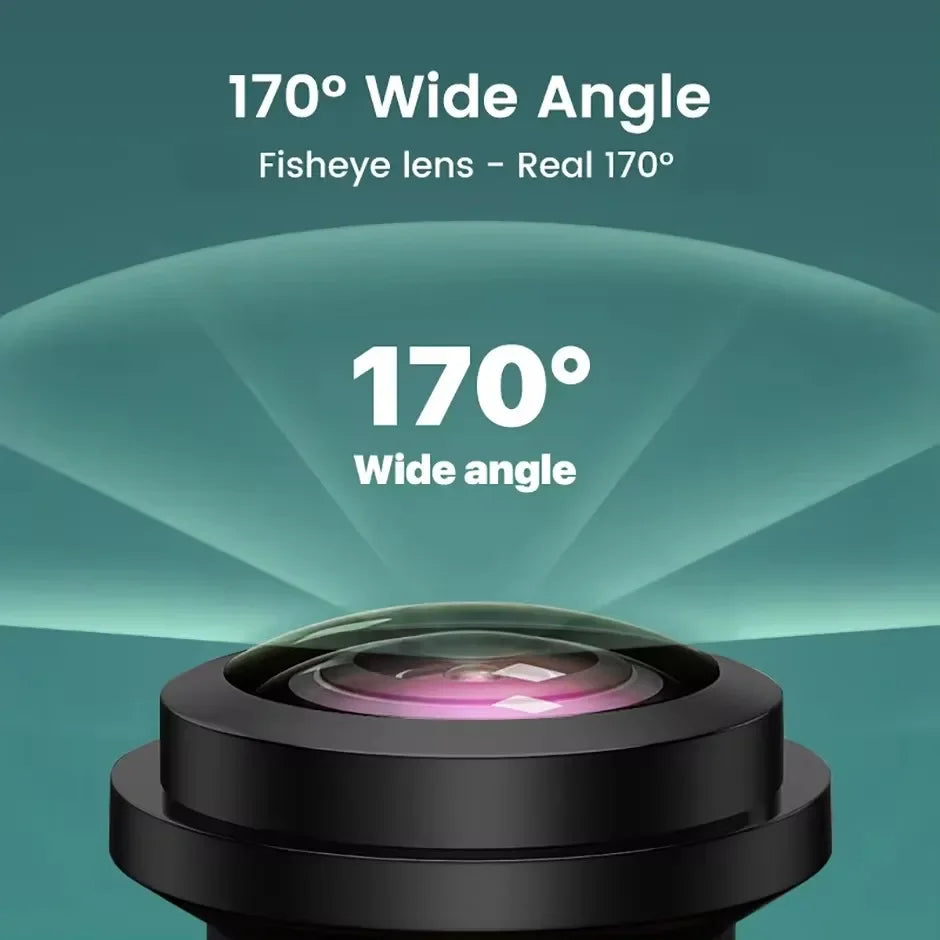

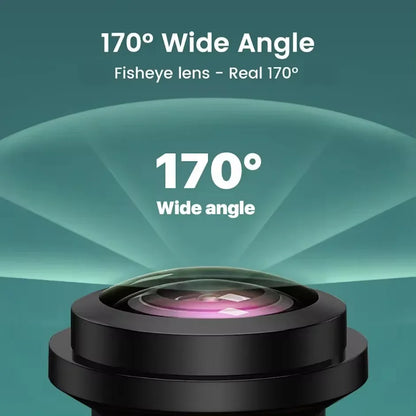

Default ( AHD1080P )+( 1920x1080 )+( 170° )
Cut the white cable→

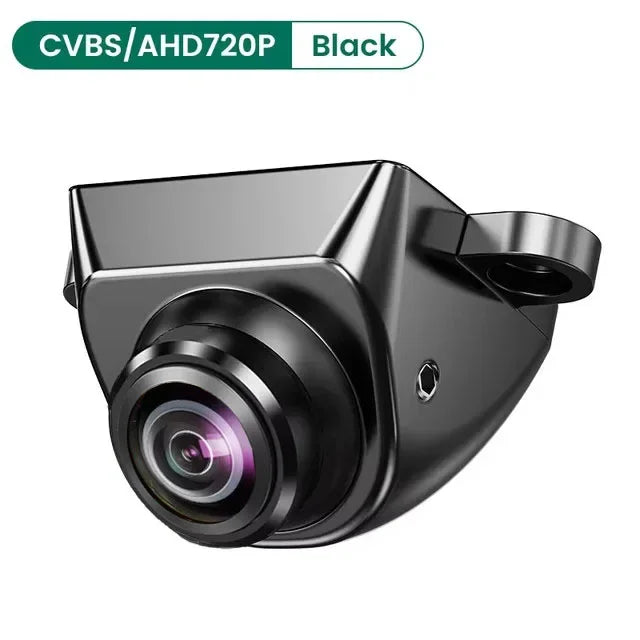

( CVBS )+( 1280x720 )+( 170° )

White Cable: Mirror Control
• The default is the rearview camera (Mirroring).
Cut the white cable→
Front view camera ( Non-mirroring )
You can also manually rotate the sphere angle 90 °, to achieve the effect of the side camera

Green Cable: Parking Line Control
• The camera with the parking line/camera does not display the parking line, you can cut the green cable, and then reconnect the camera's power supply, which can change the parking line.

Tips, About AHD1080P Style:

Please check whether the Android unit supports the AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

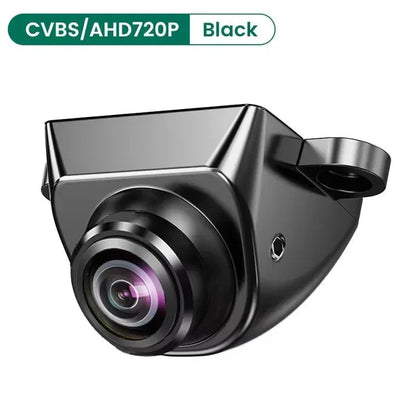

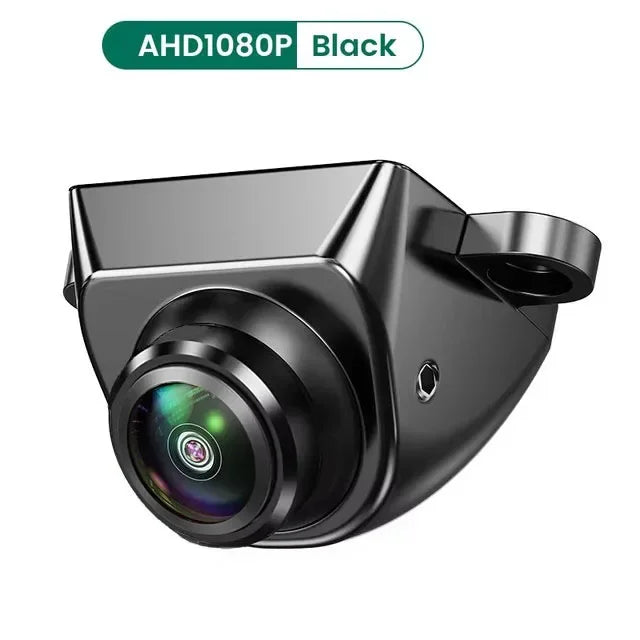

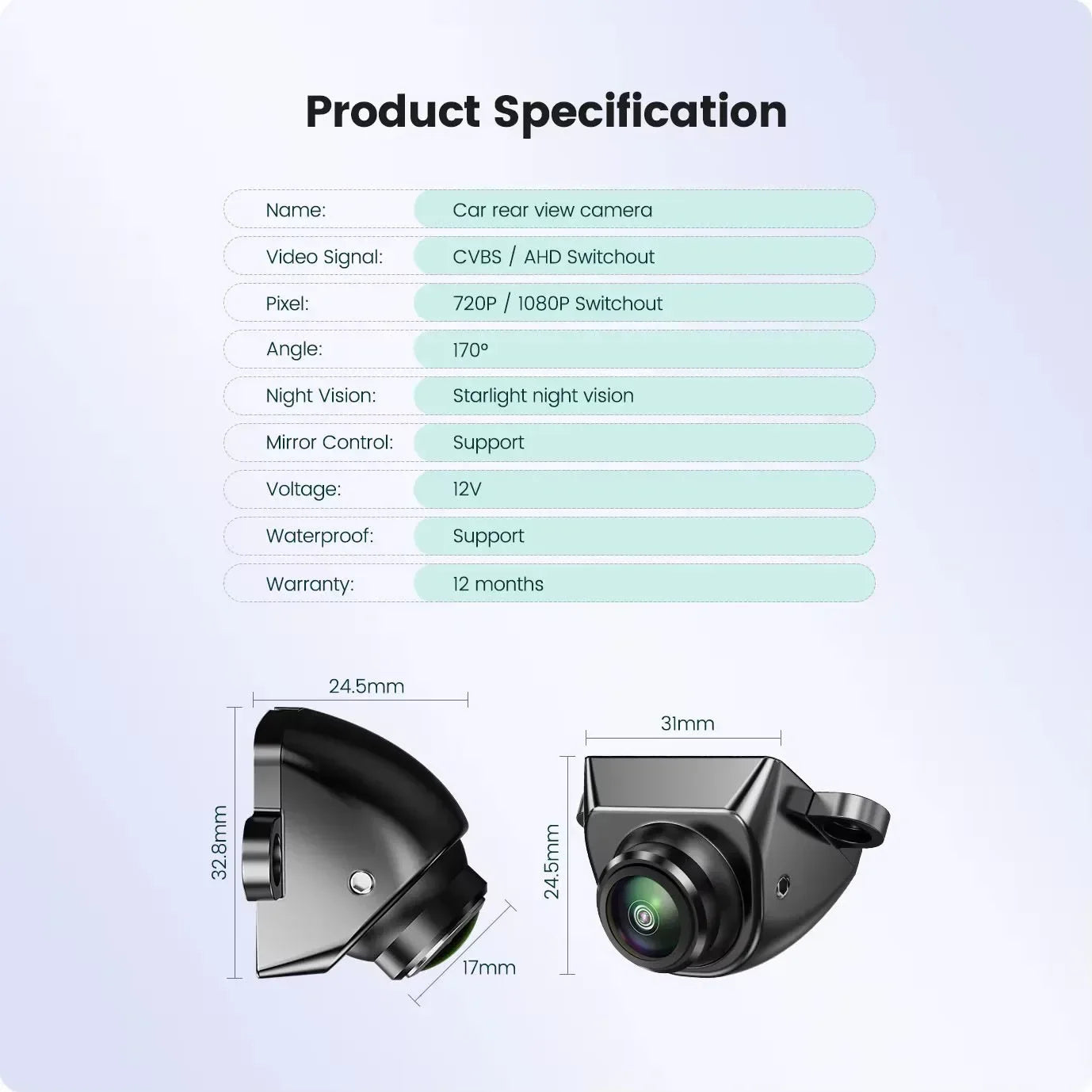

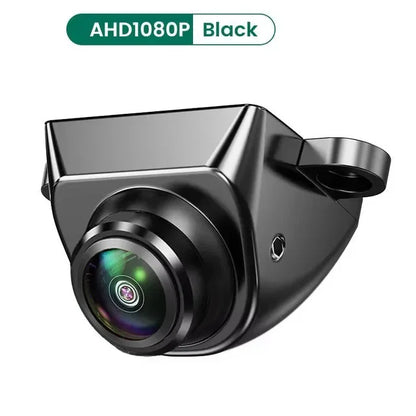

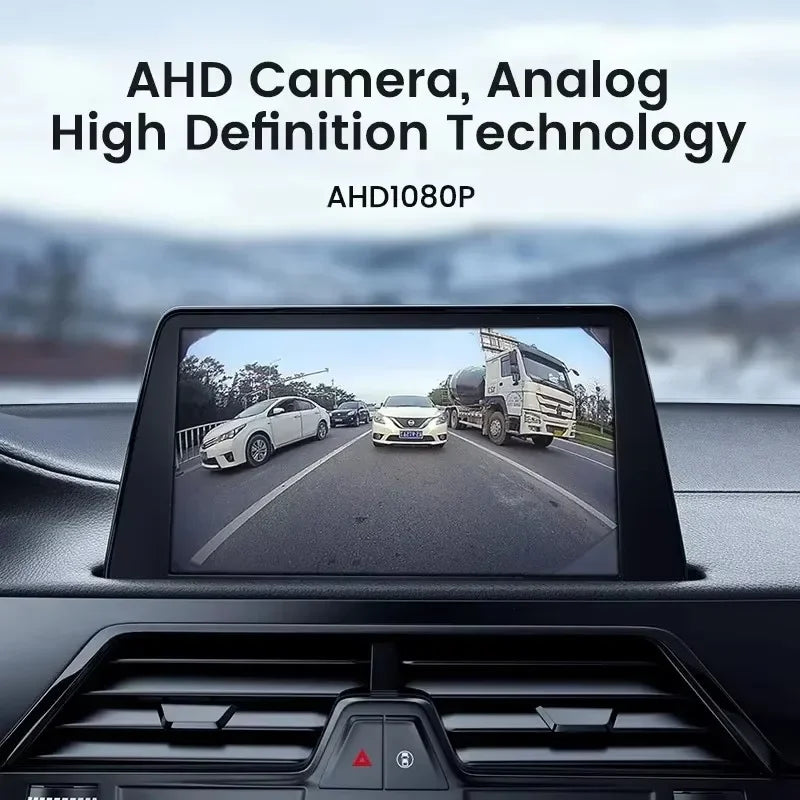

AHD1080P Camera

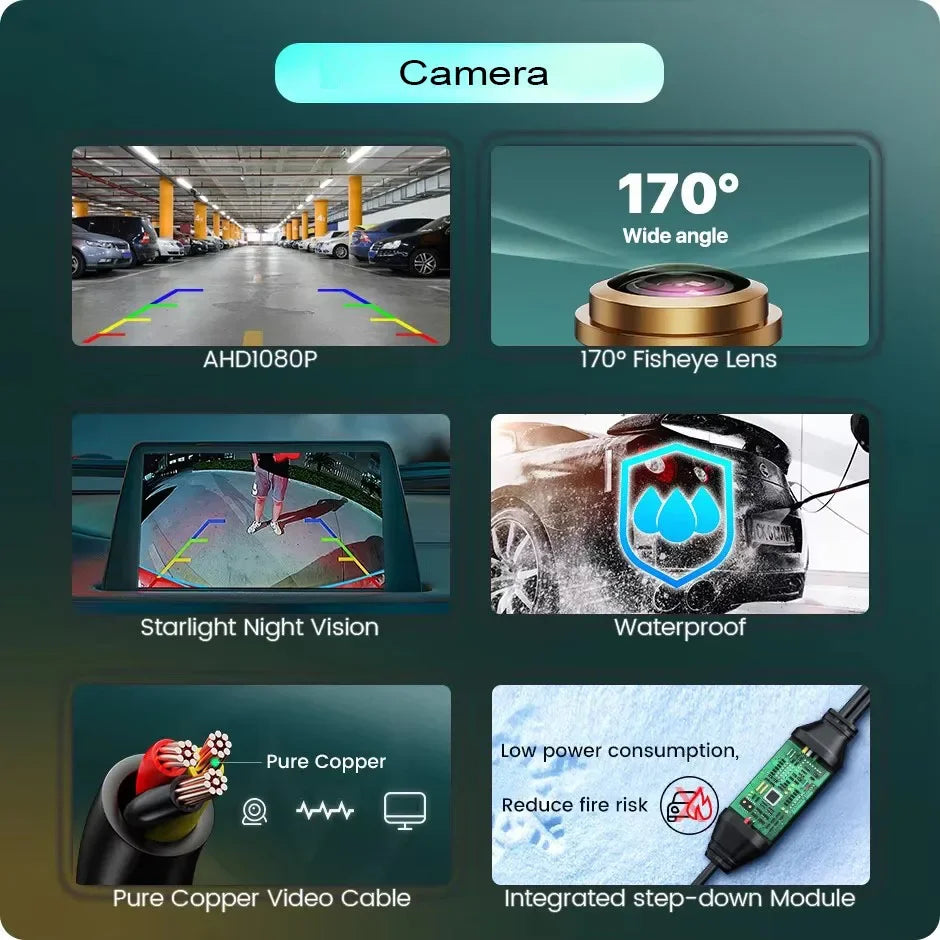

Top Starlight Night Vision

Starlight night vision function allows the camera to be used properly even at night

Conversion Line Control

White: Mirror control
Brown: Signal control
Green: Parking line switch

Pure Copper Cable

The video cable is made of high-quality pure copper, which provides better video transmission quality than cables that can be attracted by magnets.

Integrated Step-down Module
