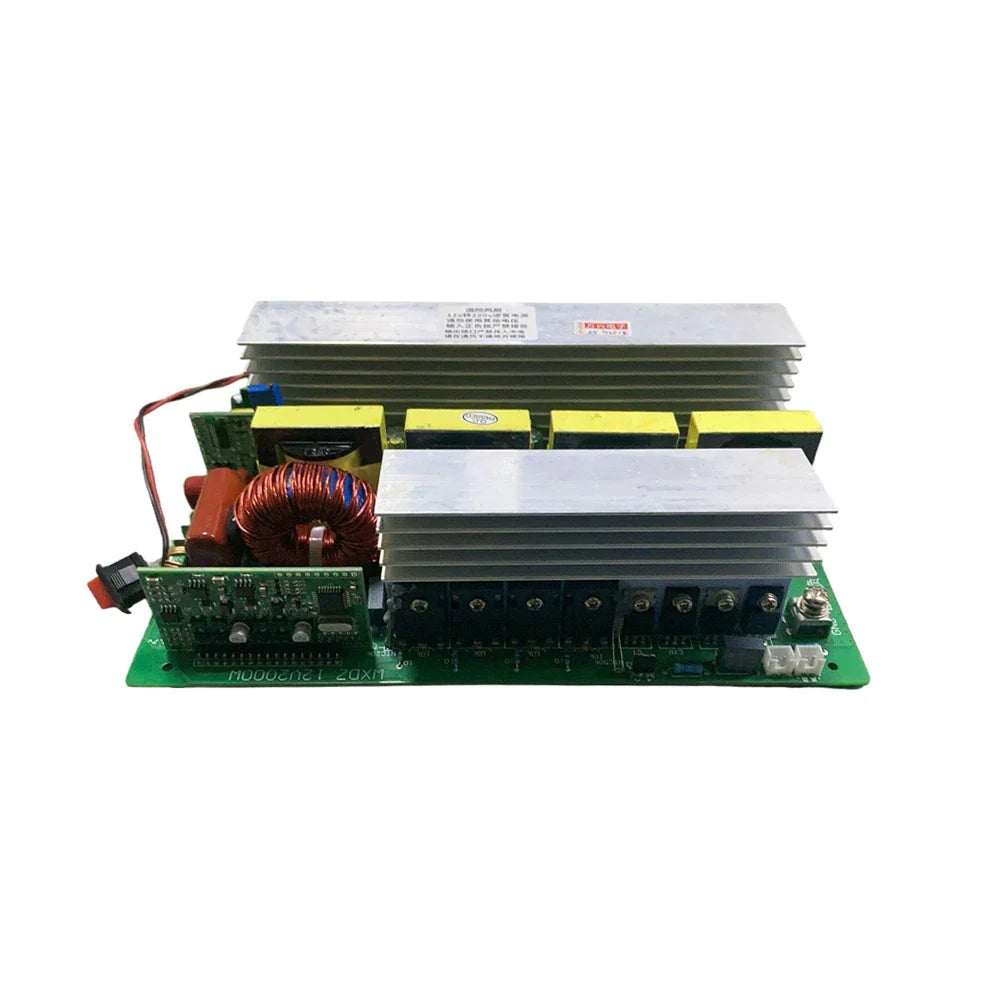

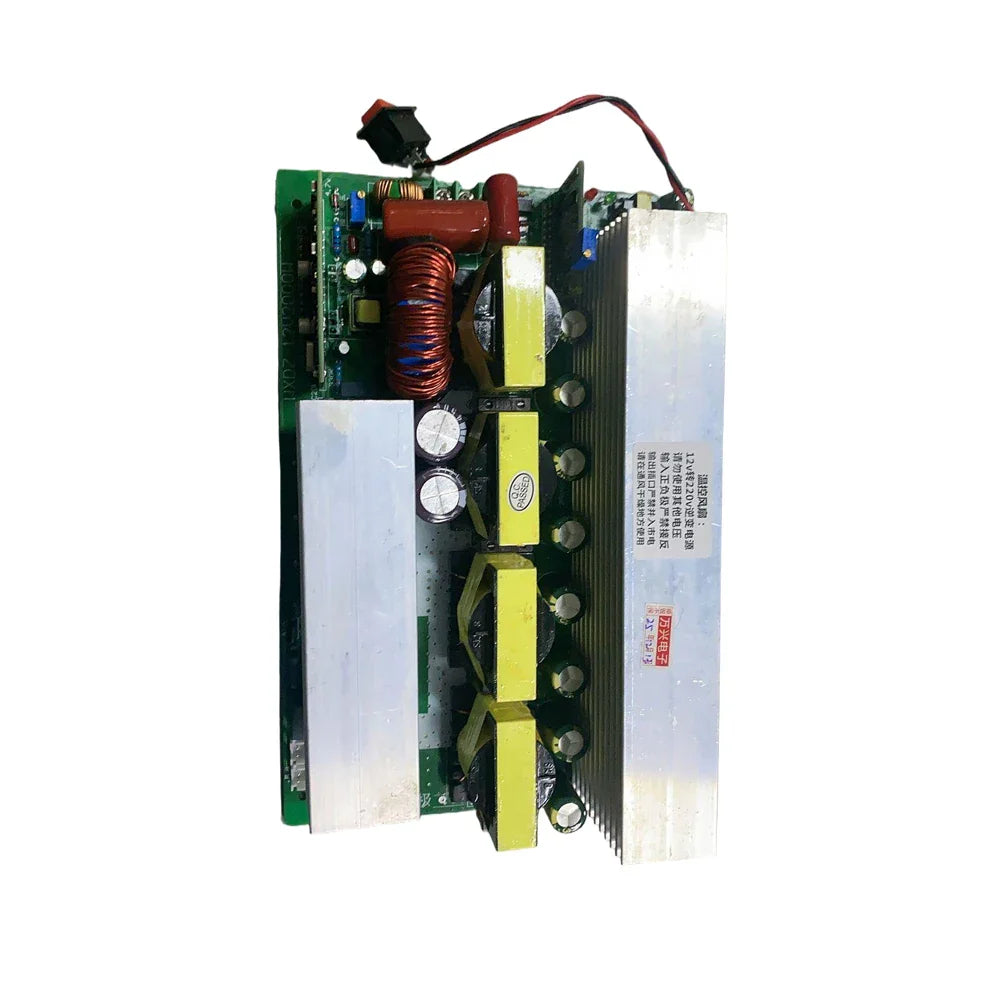

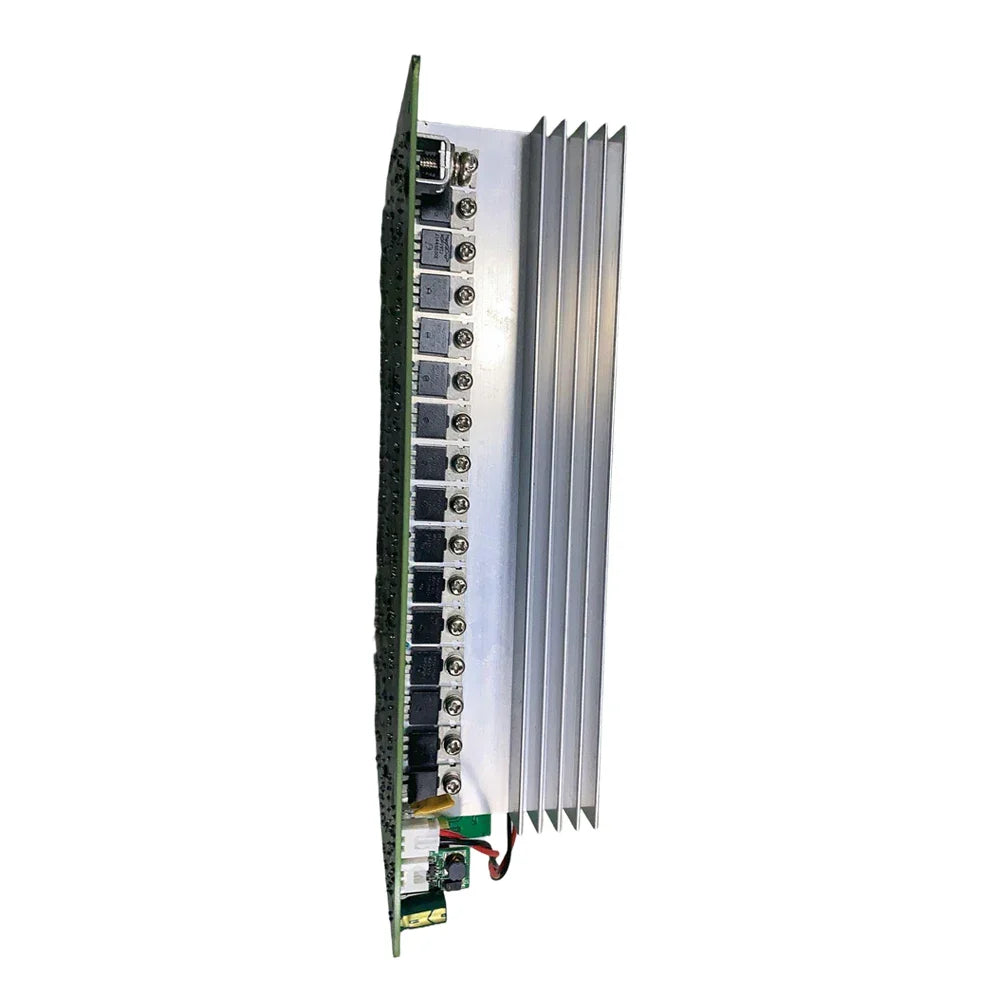

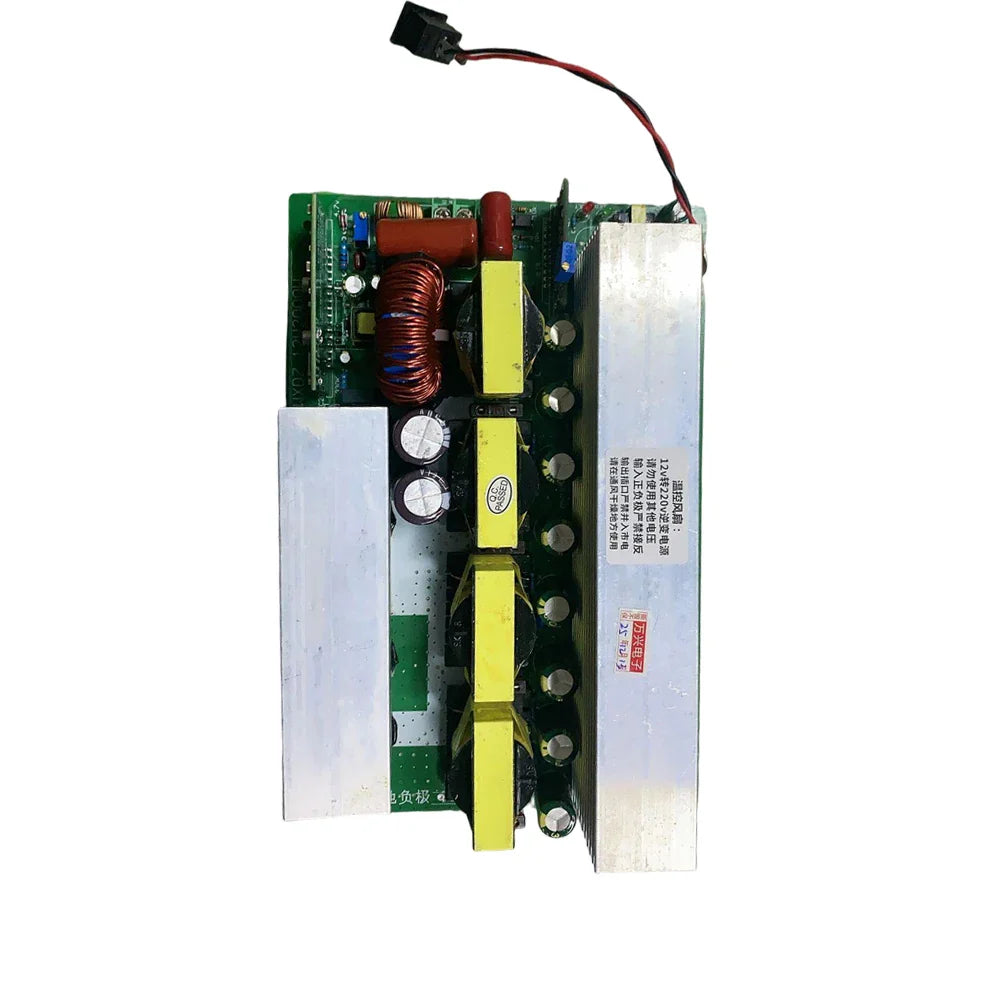

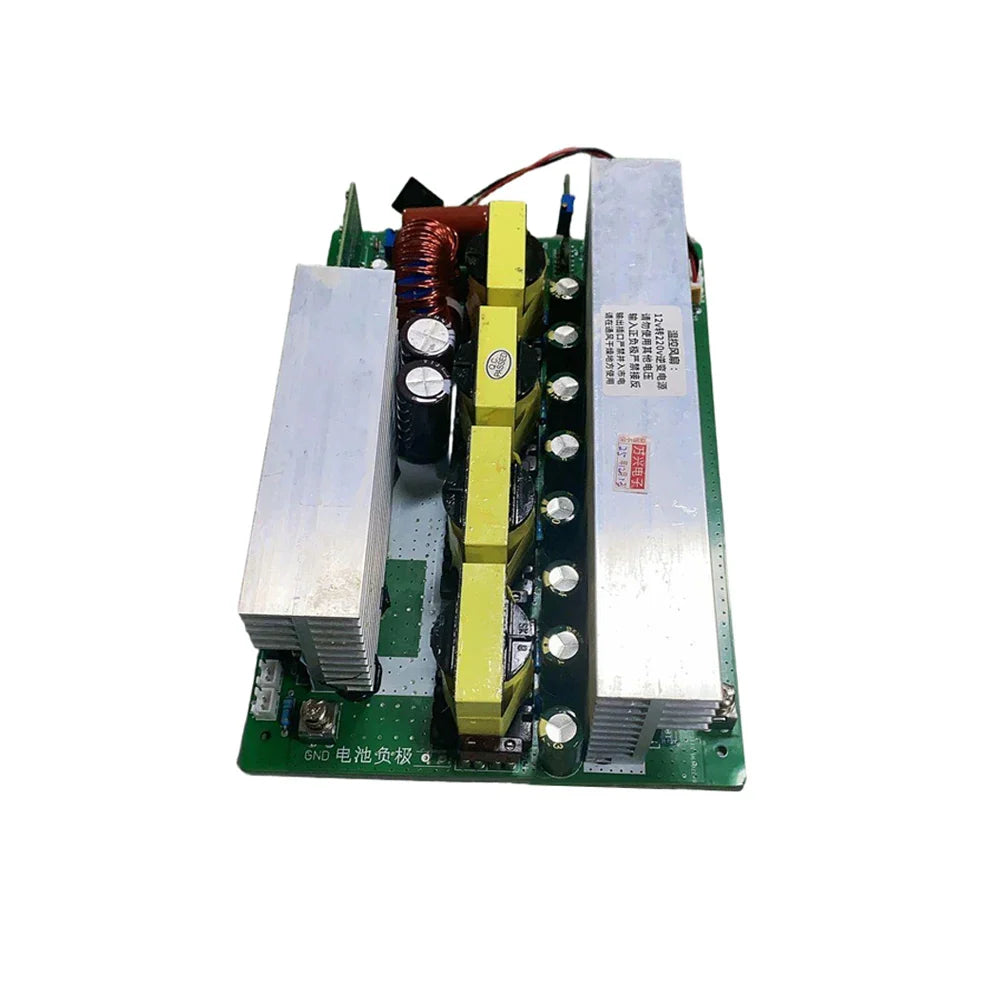

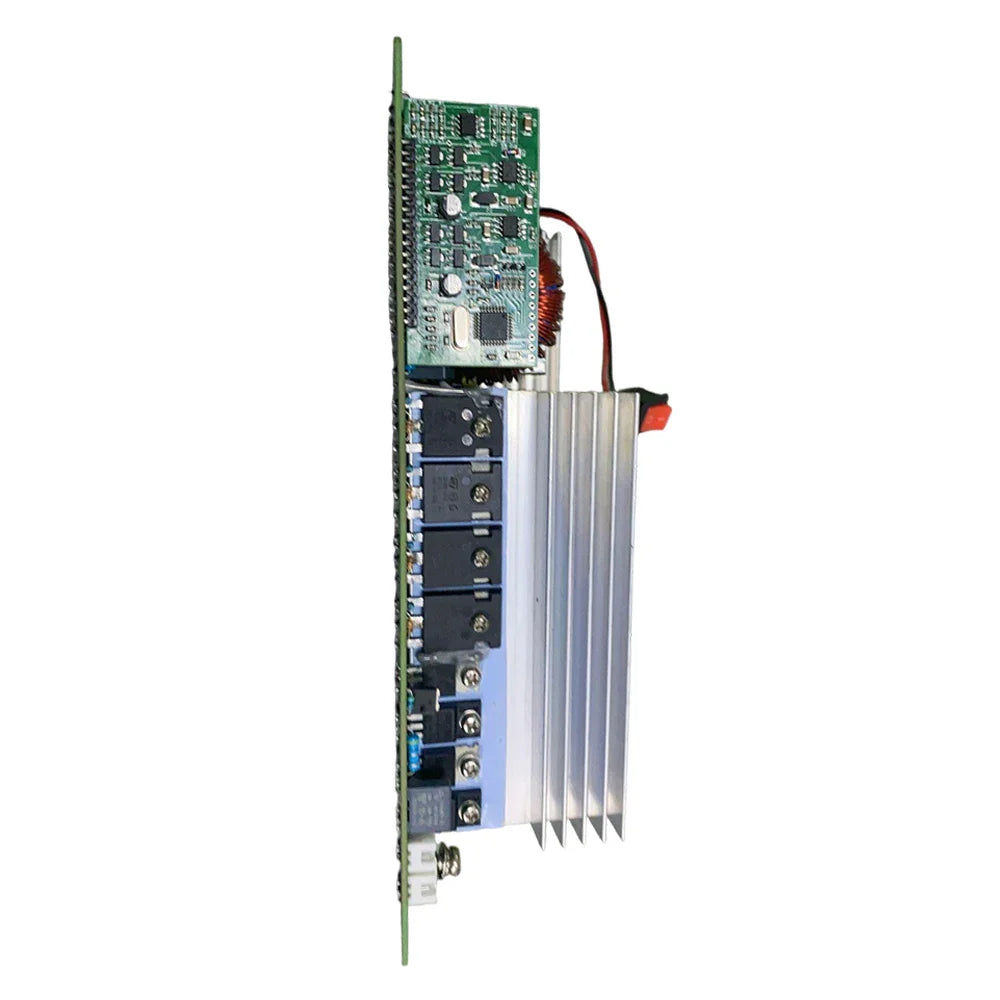

12V to 220V Inverter Pure Sine Wave Inverter Circuit Board 1500W Driver Board 12V to 220V Step-Up Boost Converter Power Board

Specifications:

Waveform: pure sine wave

Input voltage: 12V

Output voltage: 220V

Peak power: 2000W

Size: 221mmx150mmx60mm

Note:

1.Due to the light and screen difference, the item's color may be slightly different from the pictures.

2.Please allow 1mm-1cm differences due to manual measurement.

3.The 12v to 220v inverter can only be connected to one 12v battery test. Do not connect other voltages exceeding 16v voltage, which will damage the circuit board

4.The input positive and negative poles must be optimistic about 1500 watt plate buyer's standard needs to be equipped with more than 12v100 amp battery more than 16 square copper wire length can not exceed 1 meter, otherwise affect the performance.

5.The sine wave plate has a DC high voltage of about 380v, and the bottom plate must be insulated. Please do not put the power test on the board, the board leakage will damage the high voltage part of the circuit board circuit. High insulation materials such as plastic board or foam board should be padded. Human body and metal materials should not touch the circuit board during the power test.

6.The inverter is not equipped with charging function. Do not connect to the mains on the output line.

7.Although the inverter comes with short-circuit overload protection function, the electronic products can not be 100%. If there is access to high-power electrical appliances:

Inverter board protection and alarm must be disconnected in a short period of time to prevent damage to the circuit board, special notes This product can not bring air conditioning 1000 watts above water pump 1500 watts above electrical appliances.

Package includes:

1x Inverter Board
